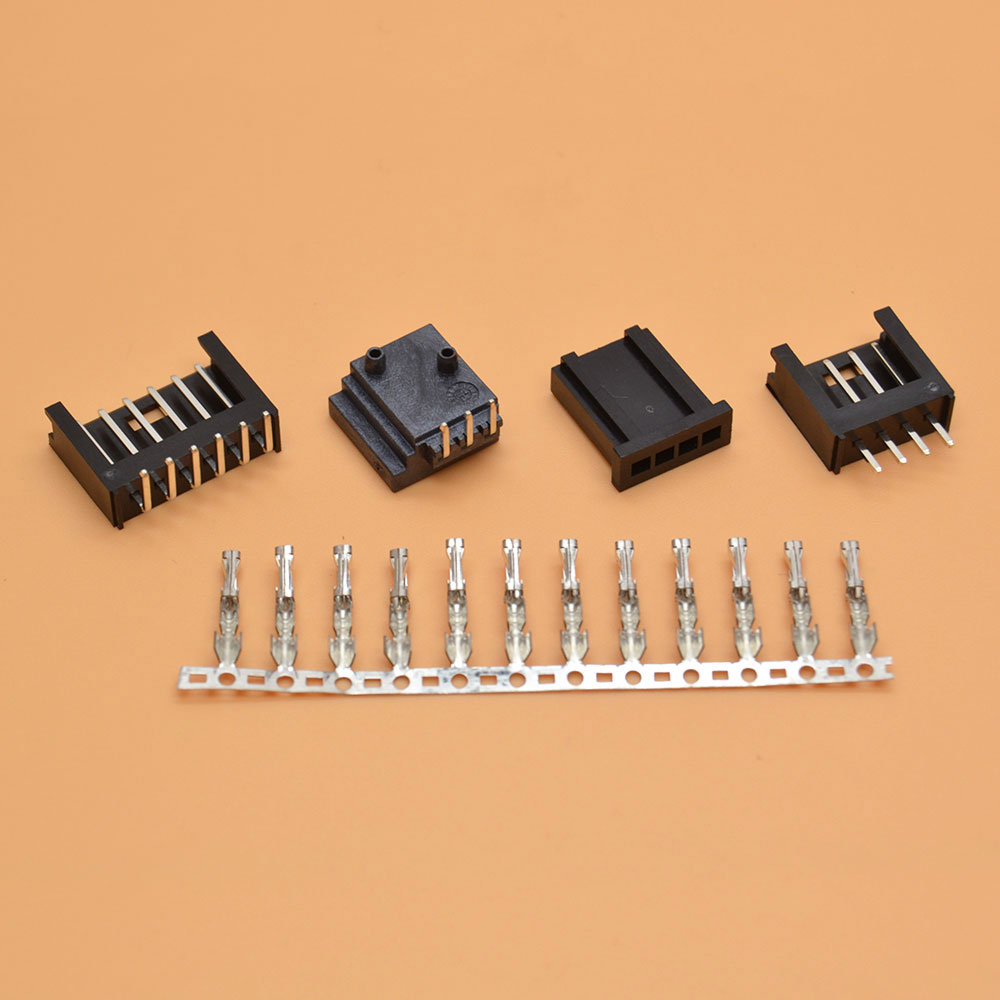

| SPECIFICATIONS | |
| Voltage rating | 250V AC, DC |
| Current rating | 3A, AC, DC |
| Withstanding Voltage | 1000V AC/minute |
| Insulation resistance | 1000MΩ min |
| Temperature range | -25°C~+85°C |
| Contact resistance | 20mΩ max |
| HOUSING | |
| Part No. | H2543-NP |
| Poles | 02-22P |
| Housing Material | PBT UL94V-0 Black |
| TERMINAL | |
| Part No. | T2543PT |
| Applicable wire | AWG#22-#26 |
| Material | Phosphor Bronze |
| Finish | Tin Plated |
| WAFER | |
| Part No. | AMP-R-03P/W2543V（R）-NP |
| Housing Material | PBT UL94V-0 Black |
| Pin Material | Brass |
| Contact Area Plating | Tin-Plated |
